Unsupervised clustering with GMVAE¶
Credit: A Grigis
Unsupervised Gaussian Mixture Variational Auto-encoder (GMVAE) on a synthetic dataset. In this example we attempt to replicate the work described in this [blog](http://ruishu.io/2016/12/25/gmvae) inspired from this [paper](https://arxiv.org/abs/1611.02648).
The test variable must be set to False to run a full training.
# sphinx_gallery_thumbnail_path = '_static/carousel/latent-space.jpg'
import os
import sys
import time
import copy
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from matplotlib.ticker import NullFormatter
from sklearn import manifold
from sklearn.cluster import KMeans
from sklearn.preprocessing import StandardScaler
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import Dataset
from consciousnet.models import GMVAE
from consciousnet.losses import GMVAELoss
test = True
n_samples = 100
n_classes = 3
n_feats = 4
true_lat_dims = 2
fit_lat_dims = 5
snr = 10
batch_size = 10
adam_lr = 2e-3
n_epochs = 3 if test else 100
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
Synthetic dataset¶
A Gaussian Linear multi-class synthetic dataset is generated as follows. The number of the latent dimensions used to generate the data can be controlled.
class GeneratorUniform(nn.Module):
""" Generate multiple sources (channels) of data through a linear
generative model:
z ~ N(mu,sigma)
for c_idx in n_channels:
x_ch = W_ch(c_idx)
where 'W_ch' is an arbitrary linear mapping z -> x_ch
"""
def __init__(self, lat_dim=2, n_channels=2, n_feats=5, seed=100):
super(GeneratorUniform, self).__init__()
self.lat_dim = lat_dim
self.n_channels = n_channels
self.n_feats = n_feats
self.seed = seed
np.random.seed(self.seed)
W = []
for c_idx in range(n_channels):
w_ = np.random.uniform(-1, 1, (self.n_feats, lat_dim))
u, s, vt = np.linalg.svd(w_, full_matrices=False)
w = (u if self.n_feats >= lat_dim else vt)
W.append(torch.nn.Linear(lat_dim, self.n_feats, bias=False))
W[c_idx].weight.data = torch.FloatTensor(w)
self.W = torch.nn.ModuleList(W)
def forward(self, z):
if isinstance(z, list):
return [self.forward(_) for _ in z]
if type(z) == np.ndarray:
z = torch.FloatTensor(z)
assert z.size(dim=1) == self.lat_dim
obs = []
for c_idx in range(self.n_channels):
x = self.W[c_idx](z)
obs.append(x.detach())
return obs
class SyntheticDataset(Dataset):
def __init__(self, n_samples=500, lat_dim=2, n_feats=5, n_classes=2,
generatorclass=GeneratorUniform, snr=1, train=True):
super(SyntheticDataset, self).__init__()
self.n_samples = n_samples
self.lat_dim = lat_dim
self.n_feats = n_feats
self.n_classes = n_classes
self.snr = snr
self.train = train
self.labels = []
self.z = []
self.x = []
seed = 7 if self.train else 14
np.random.seed(seed)
locs = np.random.uniform(-5, 5, (self.n_classes, ))
np.random.seed(seed)
scales = np.random.uniform(0, 2, (self.n_classes, ))
np.random.seed(seed)
for k_idx in range(self.n_classes):
self.z.append(
np.random.normal(loc=locs[k_idx], scale=scales[k_idx],
size=(self.n_samples, self.lat_dim)))
self.generator = generatorclass(
lat_dim=self.lat_dim, n_channels=1, n_feats=self.n_feats)
self.x.append(self.generator(self.z[-1])[0])
self.labels += [k_idx] * self.n_samples
self.data = np.concatenate(self.x, axis=0)
self.labels = np.asarray(self.labels)
_, self.data = preprocess_and_add_noise(self.data, snr=snr)
self.data = self.data.astype(np.float32)
def __len__(self):
return self.n_samples
def __getitem__(self, item):
return self.data[item], self.labels[item]
def preprocess_and_add_noise(x, snr, seed=0):
scalers = StandardScaler().fit(x)
x_std = scalers.transform(x)
np.random.seed(seed)
sigma_noise = np.sqrt(1. / snr)
x_std_noisy = x_std + sigma_noise * np.random.randn(*x_std.shape)
return x_std, x_std_noisy
ds_train = SyntheticDataset(
n_samples=n_samples, lat_dim=true_lat_dims, n_feats=n_feats,
n_classes=n_classes, train=True, snr=snr)
ds_val = SyntheticDataset(
n_samples=n_samples, lat_dim=true_lat_dims, n_feats=n_feats,
n_classes=n_classes, train=False, snr=snr)
datasets = {"train": ds_train, "val": ds_val}
dataloaders = {x: torch.utils.data.DataLoader(
datasets[x], batch_size=batch_size, shuffle=True, num_workers=1)
for x in ["train", "val"]}

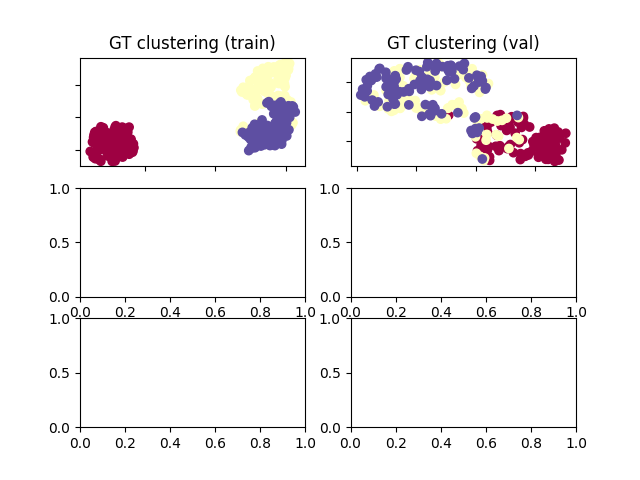

method = manifold.TSNE(n_components=2, init="pca", random_state=0)
y_train = method.fit_transform(ds_train.data)
y_val = method.fit_transform(ds_val.data)
fig, axs = plt.subplots(nrows=3, ncols=2)
for cnt, (name, y, labels) in enumerate((
("train", y_train, ds_train.labels),
("val", y_val, ds_val.labels))):
colors = labels.astype(float)
colors /= colors.max()
axs[0, cnt].scatter(y[:, 0], y[:, 1], c=colors, cmap=plt.cm.Spectral)
axs[0, cnt].xaxis.set_major_formatter(NullFormatter())
axs[0, cnt].yaxis.set_major_formatter(NullFormatter())
axs[0, cnt].set_title("GT clustering ({0})".format(name))
axs[0, cnt].axis("tight")
ML clustering¶
As a ground truth we performed a K-means clustering of the data.
kmeans = KMeans(n_clusters=n_classes, random_state=0).fit(ds_train.data)
train_labels = kmeans.labels_
train_acc = GMVAELoss.cluster_acc(train_labels, ds_train.labels)
print("-- K-Means ACC train", train_acc)
val_labels = kmeans.predict(ds_val.data)
val_acc = GMVAELoss.cluster_acc(val_labels, ds_val.labels)
print("-- K-Means ACC val",val_acc)
for cnt, (name, y, labels, acc) in enumerate((
("train", y_train, train_labels, train_acc),
("val", y_val, val_labels, val_acc))):
colors = labels.astype(float)
colors /= colors.max()
axs[1, cnt].scatter(y[:, 0], y[:, 1], c=colors, cmap=plt.cm.Spectral)
axs[1, cnt].xaxis.set_major_formatter(NullFormatter())
axs[1, cnt].yaxis.set_major_formatter(NullFormatter())
axs[1, cnt].set_title(
"K-means clustering ({0}-ACC:{1:.3f})".format(name, acc))
axs[1, cnt].axis("tight")
Out:
-- K-Means ACC train 0.9233333333333333
-- K-Means ACC val 0.6533333333333333
Training¶
Create/train the model.
def train_model(dataloaders, model, device, criterion, optimizer,
scheduler=None, n_epochs=100, checkpointdir=None,
save_after_epochs=1, board=None, board_updates=None,
load_best=False):
""" General function to train a model and display training metrics.
Parameters
----------
dataloaders: dict of torch.utils.data.DataLoader
the train & validation data loaders.
model: nn.Module
the model to be trained.
device: torch.device
the device to work on.
criterion: torch.nn._Loss
the criterion to be optimized.
optimizer: torch.optim.Optimizer
the optimizer.
scheduler: torch.optim.lr_scheduler, default None
the scheduler.
n_epochs: int, default 100
the number of epochs.
checkpointdir: str, default None
a destination folder where intermediate models/histories will be
saved.
save_after_epochs: int, default 1
determines when the model is saved and represents the number of
epochs before saving.
board: brainboard.Board, default None
a board to display live results.
board_updates: list of callable, default None
update displayed item on the board.
load_best: bool, default False
optionally load the best model regarding the loss.
"""
since = time.time()
if board_updates is not None:
board_updates = listify(board_updates)
best_model_wts = copy.deepcopy(model.state_dict())
best_loss = sys.float_info.max
dataset_sizes = {x: len(dataloaders[x]) for x in ["train", "val"]}
model = model.to(device)
for epoch in range(n_epochs):
print("Epoch {0}/{1}".format(epoch, n_epochs - 1))
print("-" * 10)
for phase in ["train", "val"]:
if phase == "train":
model.train()
else:
model.eval()
running_loss = 0.0
for batch_data, batch_labels in dataloaders[phase]:
batch_data = batch_data.to(device)
batch_labels = batch_labels.to(device)
# Zero the parameter gradients
optimizer.zero_grad()
# Forward:
# track history if only in train
with torch.set_grad_enabled(phase == "train"):
outputs, layer_outputs = model(batch_data)
criterion.layer_outputs = layer_outputs
loss, extra_loss = criterion(
outputs, batch_data, labels=batch_labels)
# Backward + optimize only if in training phase
if phase == "train":
loss.backward()
optimizer.step()
# Statistics
running_loss += loss.item() * batch_data[0].size(0)
if scheduler is not None and phase == "train":
scheduler.step()
epoch_loss = running_loss / dataset_sizes[phase]
print("{0} Loss: {1:.4f}".format(phase, epoch_loss))
if board is not None:
board.update_plot("loss_{0}".format(phase), epoch, epoch_loss)
# Display validation classification results
if board_updates is not None and phase == "val":
for update in board_updates:
update(model, board, outputs, layer_outputs)
# Deep copy the best model
if phase == "val" and epoch_loss < best_loss:
best_loss = epoch_loss
best_model_wts = copy.deepcopy(model.state_dict())
# Save intermediate results
if checkpointdir is not None and epoch % save_after_epochs == 0:
outfile = os.path.join(
checkpointdir, "model_{0}.pth".format(epoch))
checkpoint(
model=model, outfile=outfile, optimizer=optimizer,
scheduler=scheduler, epoch=epoch, epoch_loss=epoch_loss)
print()
time_elapsed = time.time() - since
print("Training complete in {:.0f}m {:.0f}s".format(
time_elapsed // 60, time_elapsed % 60))
print("Best val loss: {:4f}".format(best_loss))
# Load best model weights
if load_best:
model.load_state_dict(best_model_wts)
def listify(data):
""" Ensure that the input is a list or tuple.
Parameters
----------
arr: list or array
the input data.
Returns
-------
out: list
the liftify input data.
"""
if isinstance(data, list) or isinstance(data, tuple):
return data
else:
return [data]
def checkpoint(model, outfile, optimizer=None, scheduler=None,
**kwargs):
""" Save the weights of a given model.
Parameters
----------
model: nn.Module
the model to be saved.
outfile: str
the destination file name.
optimizer: torch.optim.Optimizer
the optimizer.
scheduler: torch.optim.lr_scheduler, default None
the scheduler.
kwargs: dict
others parameters to be saved.
"""
kwargs.update(model=model.state_dict())
if optimizer is not None:
kwargs.update(optimizer=optimizer.state_dict())
if scheduler is not None:
kwargs.update(scheduler=scheduler.state_dict())
torch.save(kwargs, outfile)
model = GMVAE(
input_dim=n_feats, latent_dim=fit_lat_dims, n_mix_components=n_classes,
sigma_min=0.001, raw_sigma_bias=0.25, dropout=0, temperature=1,
gen_bias_init=0.)
print(model)
optimizer = optim.Adam(model.parameters(), lr=adam_lr)
criterion = GMVAELoss()
train_model(dataloaders, model, device, criterion, optimizer,
scheduler=None, n_epochs=n_epochs, checkpointdir=None,
board=None, load_best=False)
model.eval()
with torch.no_grad():
p_x_given_z, dists = model(
torch.from_numpy(ds_train.data.astype(np.float32)).to(device))
q_y_given_x = dists["q_y_given_x"]
train_labels = np.argmax(q_y_given_x.logits.detach().cpu().numpy(), axis=1)
train_acc = GMVAELoss.cluster_acc(
q_y_given_x.logits, ds_train.labels, is_logits=True)
print("-- GMVAE ACC train", train_acc)
with torch.no_grad():
p_x_given_z, dists = model(
torch.from_numpy(ds_val.data.astype(np.float32)).to(device))
q_y_given_x = dists["q_y_given_x"]
val_labels = np.argmax(q_y_given_x.logits.detach().cpu().numpy(), axis=1)
val_acc = GMVAELoss.cluster_acc(
q_y_given_x.logits, ds_val.labels, is_logits=True)
print("-- GMVAE ACC val", val_acc)
for cnt, (name, y, labels, acc) in enumerate((
("train", y_train, train_labels, train_acc),
("val", y_val, val_labels, val_acc))):
colors = labels.astype(float)
colors /= colors.max()
axs[2, cnt].scatter(y[:, 0], y[:, 1], c=colors, cmap=plt.cm.Spectral)
axs[2, cnt].xaxis.set_major_formatter(NullFormatter())
axs[2, cnt].yaxis.set_major_formatter(NullFormatter())
axs[2, cnt].set_title(
"GMVAE clustering ({0}-ACC:{1:.3f})".format(name, acc))
axs[2, cnt].axis("tight")
plt.subplots_adjust(left=0.05, bottom=0.05, right=0.95, top=0.95,
wspace=0.1, hspace=0.5)
plt.show()
Out:
GMVAE(
(_prior_gmm): ConditionalNormal(
(w_gaussian): Gaussian(
(w_mu): Linear(in_features=3, out_features=5, bias=True)
(w_var): Linear(in_features=3, out_features=5, bias=True)
)
)
(_decoder): ConditionalBernoulli(
(w_dense): Sequential(
(0): Linear(in_features=5, out_features=4, bias=True)
)
)
(_encoder_y): ConditionalCategorical(
(w_dense): Sequential(
(0): Linear(in_features=4, out_features=3, bias=True)
)
)
(_encoder_gmm): ConditionalNormal(
(w_gaussian): Gaussian(
(w_mu): Linear(in_features=7, out_features=5, bias=True)
(w_var): Linear(in_features=7, out_features=5, bias=True)
)
)
)
Epoch 0/2
----------
train Loss: 32.7771
val Loss: 29.0012
Epoch 1/2
----------
train Loss: 26.2202
val Loss: 25.1327
Epoch 2/2
----------
train Loss: 20.4174
val Loss: 21.4892
Training complete in 0m 0s
Best val loss: 21.489237
-- GMVAE ACC train 0.6766666666666666
-- GMVAE ACC val 0.59
Total running time of the script: ( 0 minutes 3.406 seconds)
Follow us
